Heavy-Duty Industrial Guardrail System (Armco Type) – Galvanised & Yellow
Heavy-Duty Industrial Guardrail System (Armco Type) – Galvanised & Yellow - Image 2

Heavy-Duty Industrial Guardrail System (Armco Type) – Galvanised & Yellow

Protect your facility with our Heavy-Duty Industrial Guardrail System. Constructed from robust steel, this “Armco-style” barrier is engineered to deflect vehicle impacts and shield pedestrians and machinery. Available in Hot-Dipped Galvanised for outdoor use or Safety Yellow for high-visibility indoor compliance. Modular components include surface-mount posts (750mm/1100mm) and rails from 1m to 4m.

Category: Product ID: 20794

Description

Indispensable Protection for High-Traffic Zones

In busy industrial environments, a painted line on the floor isn’t enough to stop a forklift. Our Heavy-Duty Guardrail System provides a robust physical barrier engineered to withstand significant impacts, protecting your people, your building, and your machinery from vehicle collisions.

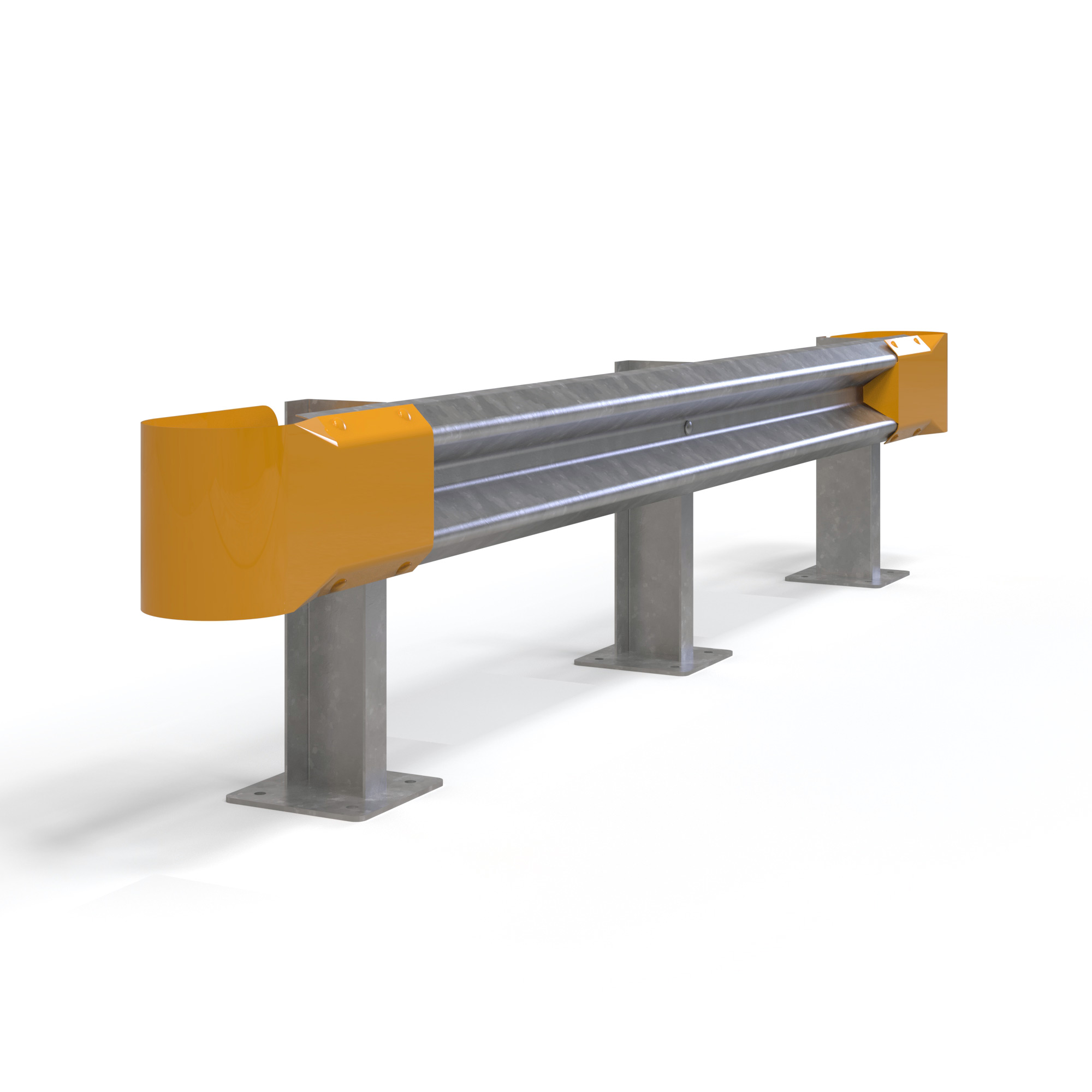

Constructed from heavy-duty steel, this W-Beam style barrier is designed to absorb collision energy and redirect vehicles away from hazards. Whether you are safeguarding a pedestrian walkway, protecting expensive rack ends, or delineating a loading dock, this system is your primary defence against workplace accidents.

Maximum Impact Resistance

This isn’t lightweight decorative fencing. It is structural steel protection.



  • Deflection: The corrugated “W-beam” profile increases stiffness, ensuring the rail doesn’t buckle easily under load.

  • Asset Protection: ideal for shielding structural columns, electrical panels, and pallet racking from forklift forks and reversing trucks.

Two Finish Options (Galvanised or Safety Yellow)

Select the finish that suits your environment:



  • Galvanised (G Series): Hot-dipped galvanised for superior rust protection. Ideal for outdoor car parks and external yards.

  • Safety Yellow (Y Series): Galvanised base with a heavy-duty Yellow Powder Coat. Provides maximum visual warning in low-light warehouses to prevent accidents before they happen.

Modular & Easy to Install

The system is fully modular. Simply bolt the surface-mounted posts to your concrete slab, attach the rail sections using our secure fixing packs, and cap the ends.



  • Flexible Layouts: With rail lengths ranging from 1 metre to 4 metres, you can build continuous runs of any length.



System Components & Specifications

Build your custom barrier by selecting the posts, rails, and accessories below.

Provide uncompromised safety and a clear physical barrier using our robust post system. These strong support posts are hot-dipped galvanised and designed with a heavy-duty baseplate for straightforward, reliable surface mounting. Available in two heights
to suit various barrier requirements.


Guardrail Post Surface Mount 1100 GalvanisedGuardrail Post Surface Mount 1100 GalvanisedSKU: GRPSM1100G
$127.60 inc. GST
Guardrail Post Surface Mount 750 GalvanisedGuardrail Post Surface Mount 750 GalvanisedSKU: GRPSM750G
$94.60 inc. GST

Available in four standard lengths, our rail sections are built from heavy-duty steel to withstand substantial
impact. Choose between the standard hot-dipped galvanised finish for corrosion resistance (G models) or the
enhanced visibility of the galvanise

Guardrail Sections - Galvanised, 1000mmGuardrail Sections – Galvanised, 1000mmSKU: GR1000G
$66.00 inc. GST
Guardrail Sections - Galvanised, 3000mmGuardrail Sections – Galvanised, 3000mmSKU: GR3000G
$161.70 inc. GST
Guardrail Sections - Galvanised, 4000mmGuardrail Sections – Galvanised, 4000mmSKU: GR4000G
$198.00 inc. GST
PlaceholderGuardrail Sections – Powder Coated, 1000mmSKU: GR1000Y
$96.80 inc. GST
PlaceholderGuardrail Sections – Powder Coated, 2000mmSKU: GR2000Y
$165.00 inc. GST
PlaceholderGuardrail Sections – Powder Coated, 3000mmSKU: GR3000Y
$233.20 inc. GST
PlaceholderGuardrail Sections – Powder Coated, 4000mmSKU: GR4000Y
$284.90 inc. GST
Significantly enhance safety at the guardrail systems terminations. The Stubby Nose End Terminal (GRSNEY) is a durable, high-visibility accessory designed to provide exceptional protection where the rail terminates. For standard ends, use our plastic protectors (GREP and GRTP) to cap exposed edges and increase safety.
PlaceholderGuardrail Stubby Nose End – YellowSKU: GRSNEY
$113.30 inc. GST
PlaceholderGuardrail Plastic End ProtectorSKU: GREP
$13.20 inc. GST
PlaceholderGuardrail Plastic Top ProtectorSKU: GRTP
$15.40 inc. GST

Ensure the secure and reliable installation of the Guardrails with our essential nut and bolt packs. These components are available in two sizes and
come in both standard steel (GR) and highly visible
yellow-coated (GRY) finishes to match your chosen
rail system.

Placeholder32x16mm Bolt & Nut 8 packSKU: GR32X16-8
$10.56 inc. GST
Placeholder32x16mm Yellow Bolt & Nut 8 packSKU: GR32X16Y-8
$14.74 inc. GST
Placeholder50x16mm Bolt & NutSKU: GR50X16
$1.32 inc. GST
Placeholder50x16mm Yellow Bolt & NutSKU: GR50X16Y
$2.31 inc. GST

Ideal Applications

Warehouse Segregation: Separating forklift lanes from pedestrian walkways.

Asset Protection: Shielding building columns, water tanks, and electrical boards.

Car Parks: preventing vehicles from hitting walls or dropping off edges.

Loading Docks: Protecting dock levellers and door tracks.

Reviews

There are no reviews yet

Be the first to review “Heavy-Duty Industrial Guardrail System (Armco Type) – Galvanised & Yellow”

Your email address will not be published. Required fields are marked *

How far apart should I space the posts?

Post spacing depends on the rail length you choose. Generally, posts are installed at 2-metre centres for standard heavy-duty applications. For extremely high-impact zones, spacing can be reduced to 1 metre using the shorter rails.

Can I use this outdoors?

Yes. All components are Hot-Dipped Galvanised as a base layer. This provides industrial-grade corrosion resistance against rain and humidity. The Yellow option adds a second layer of powder coating for visibility.

What is the “Stubby Nose” for?

The Stubby Nose End is a curved steel terminal that bolts onto the end of a run. It deflects wheels if a vehicle hits the end of the barrier, preventing the vehicle from hitting a blunt steel edge or “spearing” the rail.

Can I use this guardrail on public roads or highways?

No. This guardrail system is engineered specifically for private property and industrial use only (such as warehouses, car parks, and factories). It is not approved by road authorities for use on public highways or gazetted roads. It is strictly for off-road asset protection and traffic management on private sites.
