Description

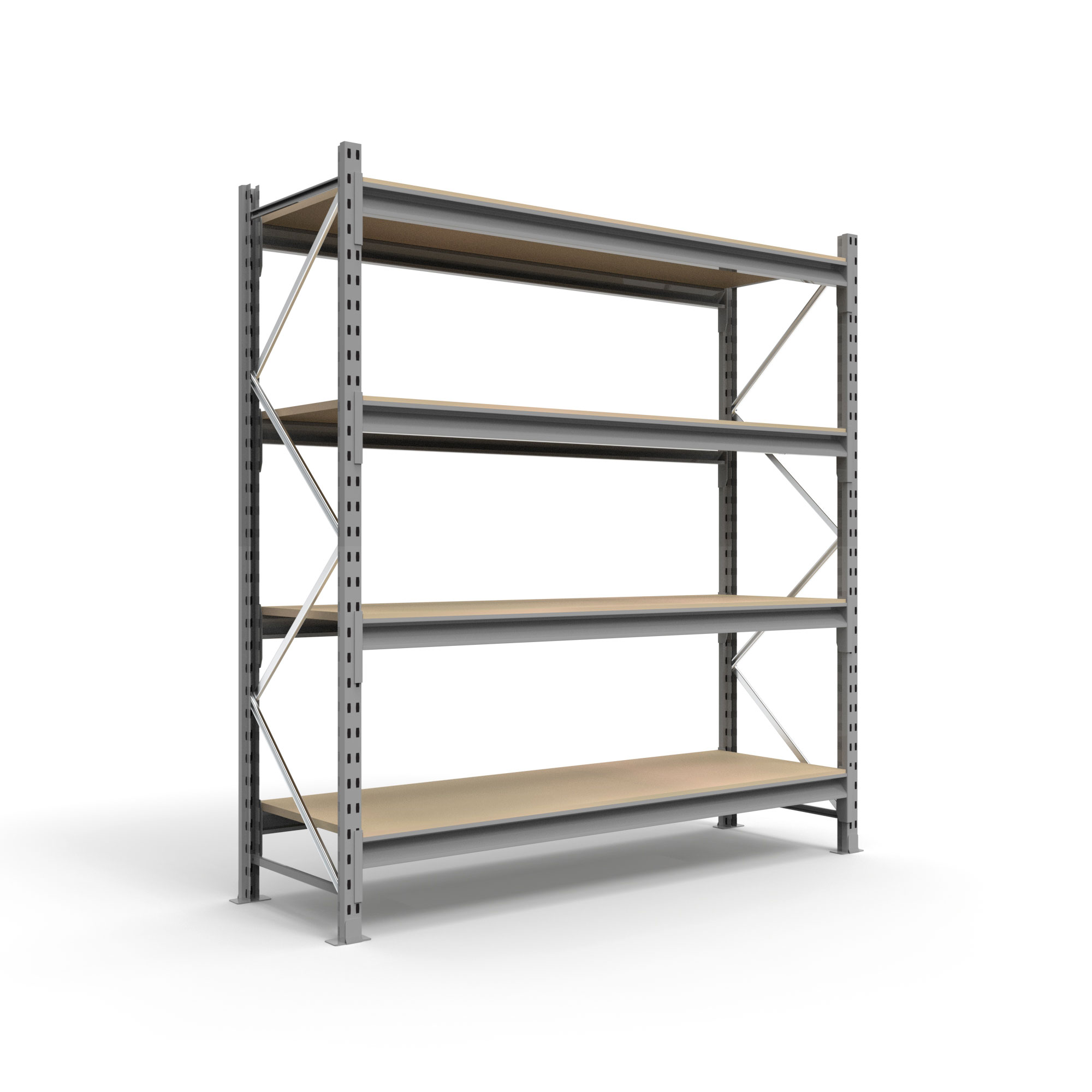

The Industrial Longspan Starter Bay is engineered for high-density, heavy-duty hand-loading applications where standard retail shelving fails. Featuring two full end-frames, it is designed as a standalone unit that supports its own weight and your heaviest gear without needing to be anchored to a wall.
The Configuration
This Starter Bay is Step 1 of our Shelving Builder. It includes:
- 2 x Heavy Duty End Frames: High-grade steel, powder-coated for durability in industrial environments.
- Horizontal Beams: Designed with a recessed step-down to securely hold your choice of shelving levels.
- Locking Pins: All beams include safety locking pins to ensure they remain seated even under heavy upward forklift or hand-loading impact.
Available Dimensions & Load Ratings
Our Longspan system is fully modular. Select your required Frame Height, Bay Depth, and Beam Length to fit your exact footprint.
Height & Depth Options:
Frame Heights: 915mm | 2000mm | 2400mm | 3000mm
Bay Depths: 460mm | 600mm | 900mm
Length & Weight Capacities:
Note: Ensure you account for the ‘External Bay Length’ when measuring your floor plan to accommodate the width of the upright frames.
| Beam Length (mm) | External Bay Length (mm) | Max Load Per Level (UDL) |
|---|---|---|
| 900 | 1020 | 450kg |
| 1200 | 1320 | 450kg |
| 1500 | 1620 | 450kg |
| 1800 | 1920 | 400kg |
| 2400 | 2520 | 300kg |
